Synthetic benchmarks

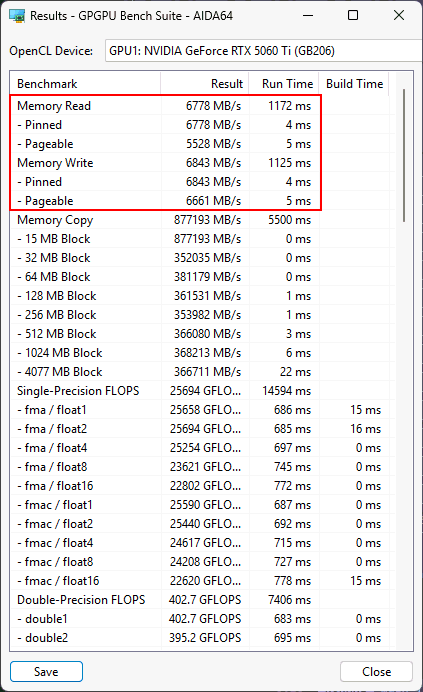

Aida64
| Name | AMD 680M | AMD 5700XT PCIe3 | AMD 5700XT PCIe4 | Nvidia 5060Ti PCIe4 |
|---|
| Read Pinned (GB/s) | 34.1 | 3.38 | 6.7 | 6.78 |
| Read Pageable (GB/s) | 11.7 | 2.78 | 4.74 | 5.53 |
| Write Pinned (GB/s) | 35.2 | 3.37 | 6.71 | 6.84 |
| Write Pageable (GB/s) | 13.1 | 2.71 | 4.74 | 6.67 |

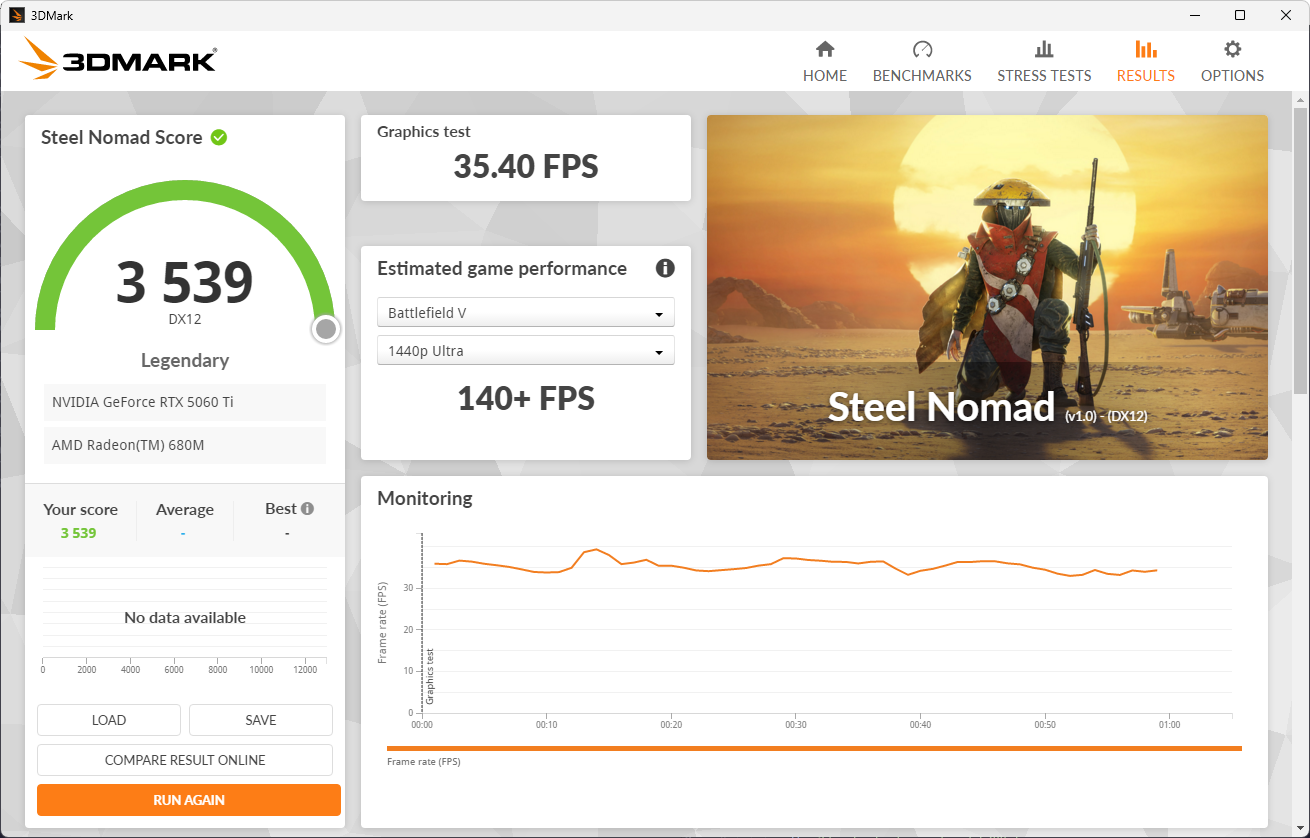

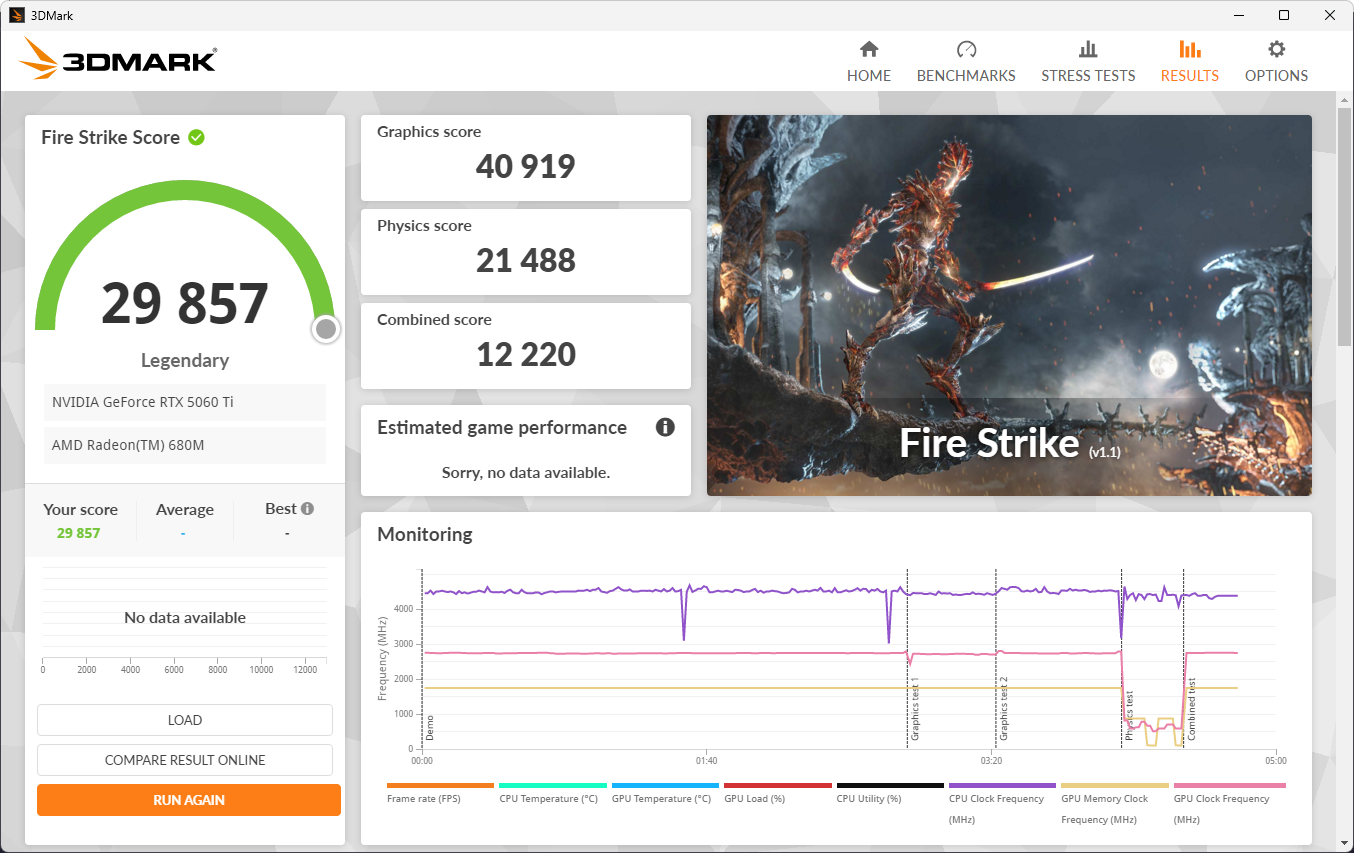

3DMark
| Name | AMD 680M | AMD 5700XT PCIe3 | AMD 5700XT PCIe4 | Nvidia 5060Ti PCIe4 |
|---|

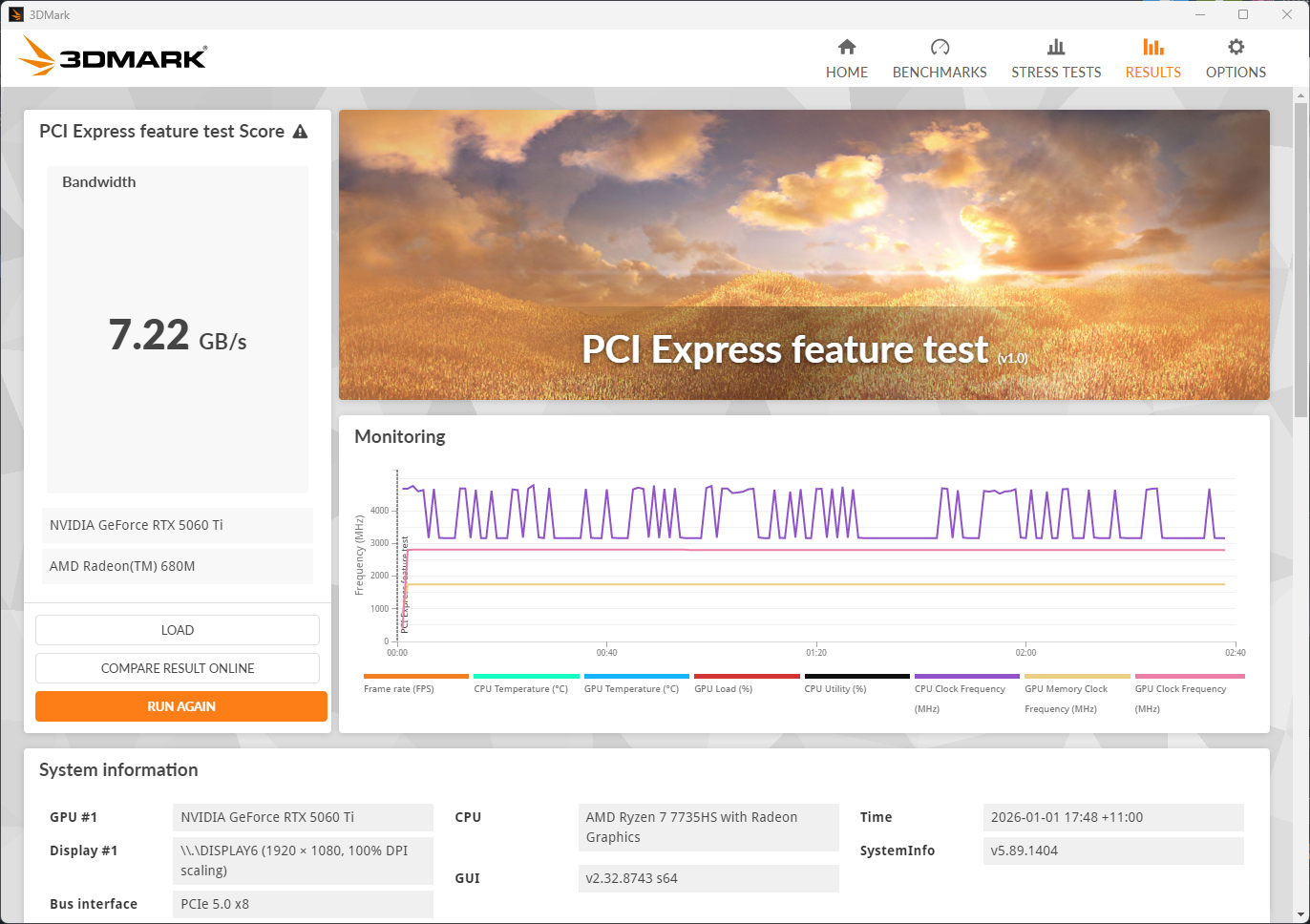

| PCIe Bandwidth (GB/s) | 11.2 | 3.53 | 6.39 | 7.22 |
| Fire Strike | 6155 | 19512 | 23577 | 29857 |

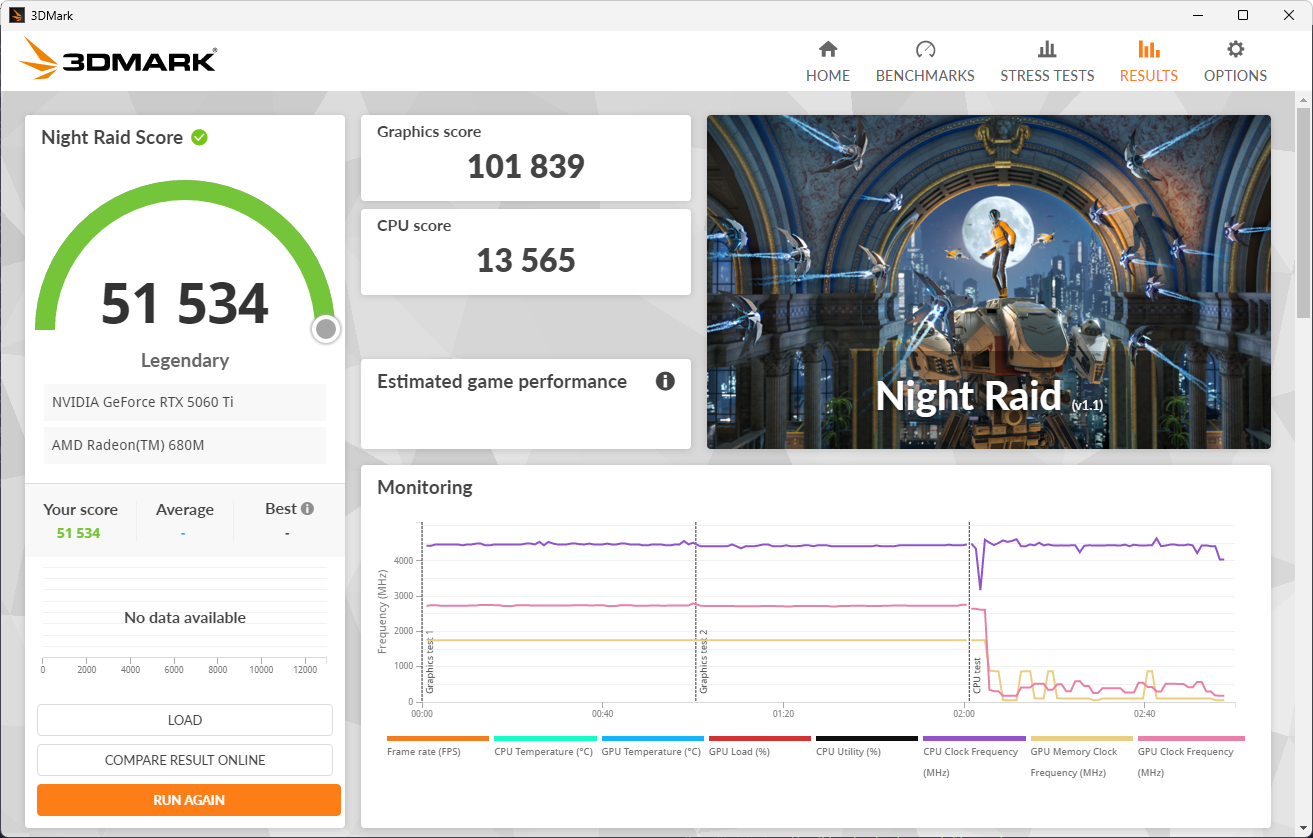

| Night Raid | 23554 | 35831 | 52358 | 51534 |
| Steel Nomad | 444 | 1950 | 2030 | 3539 |
| Steel Nomad Light | 2308 | 7299 | 8218 | 16101 |

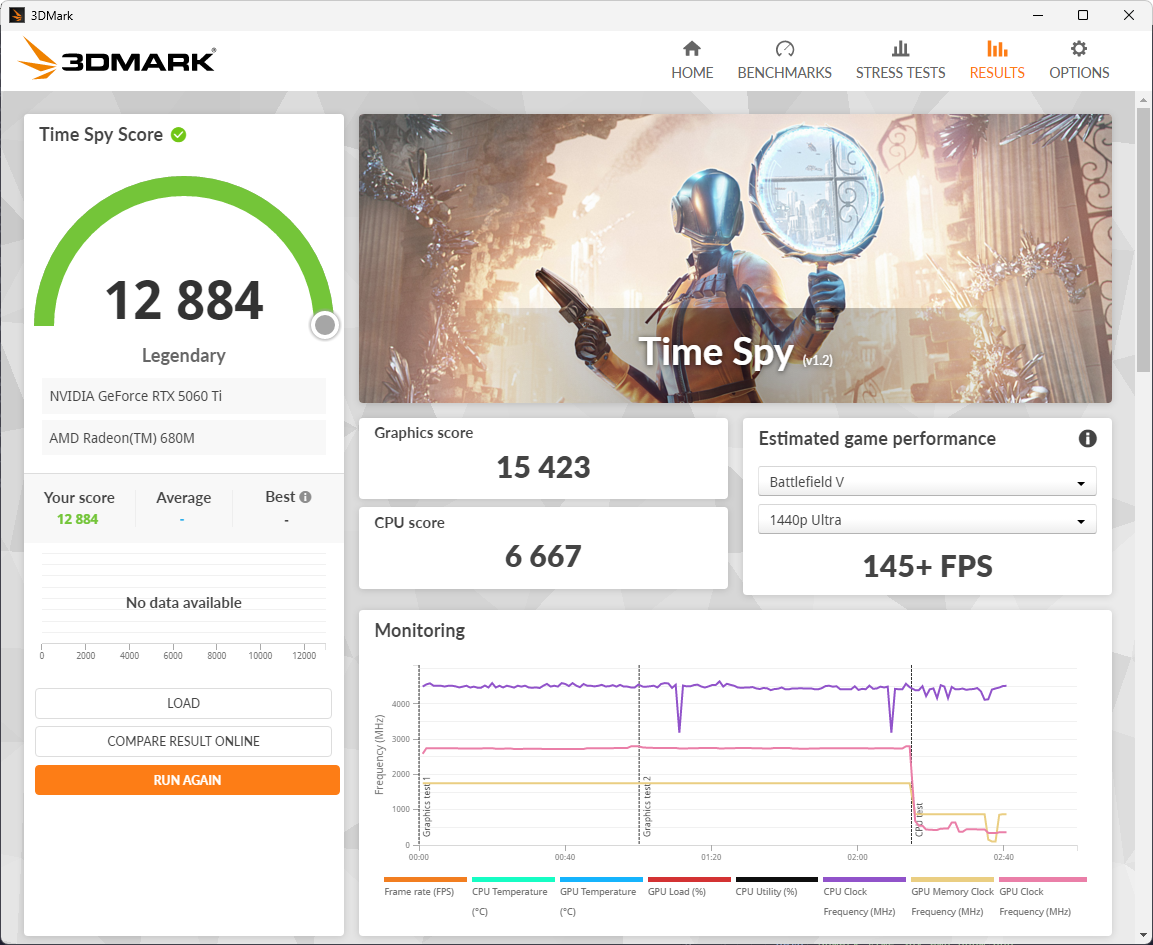

| Time Spy | 2762 | 8093 | 9051 | 12884 |
| Wild Life | 15622 | 35637 | 54329 | 82375 |

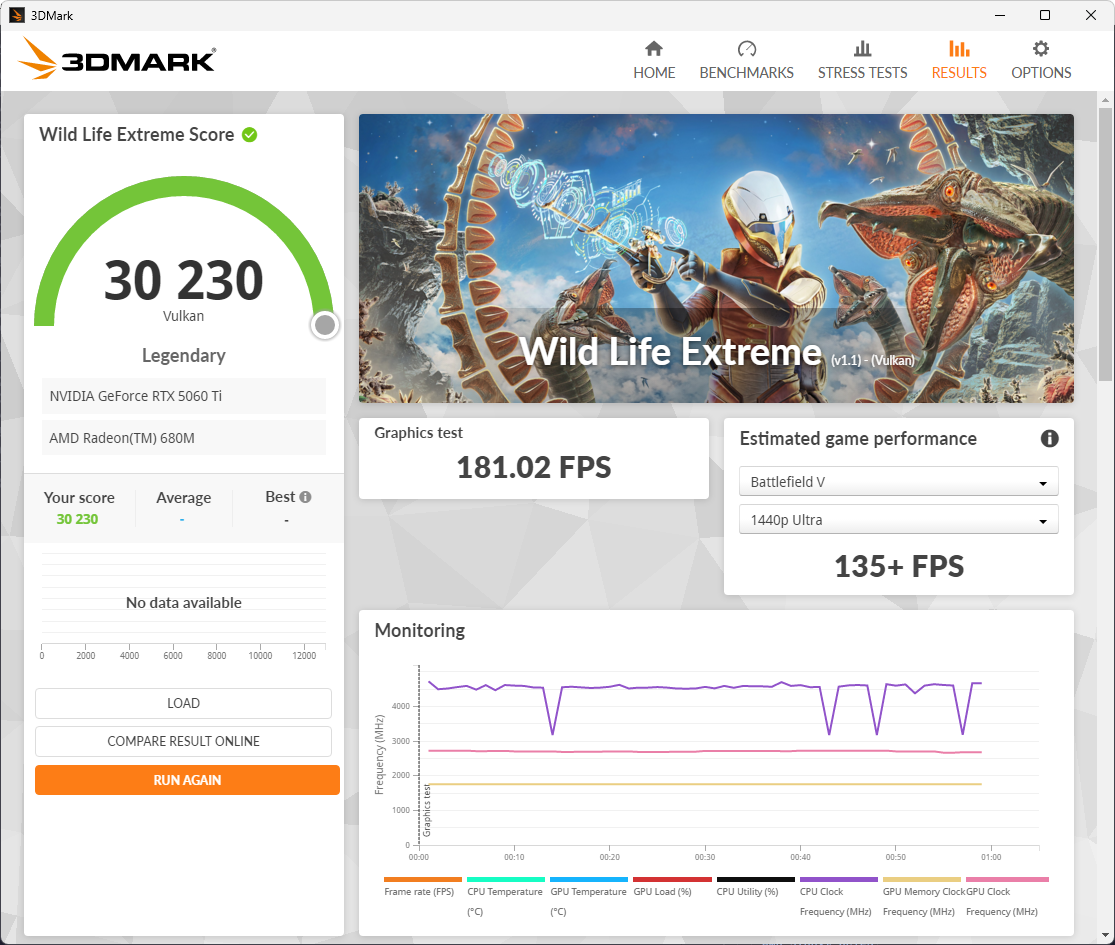

| Wild Life Extreme | 4523 | 15497 | 18682 | 30230 |

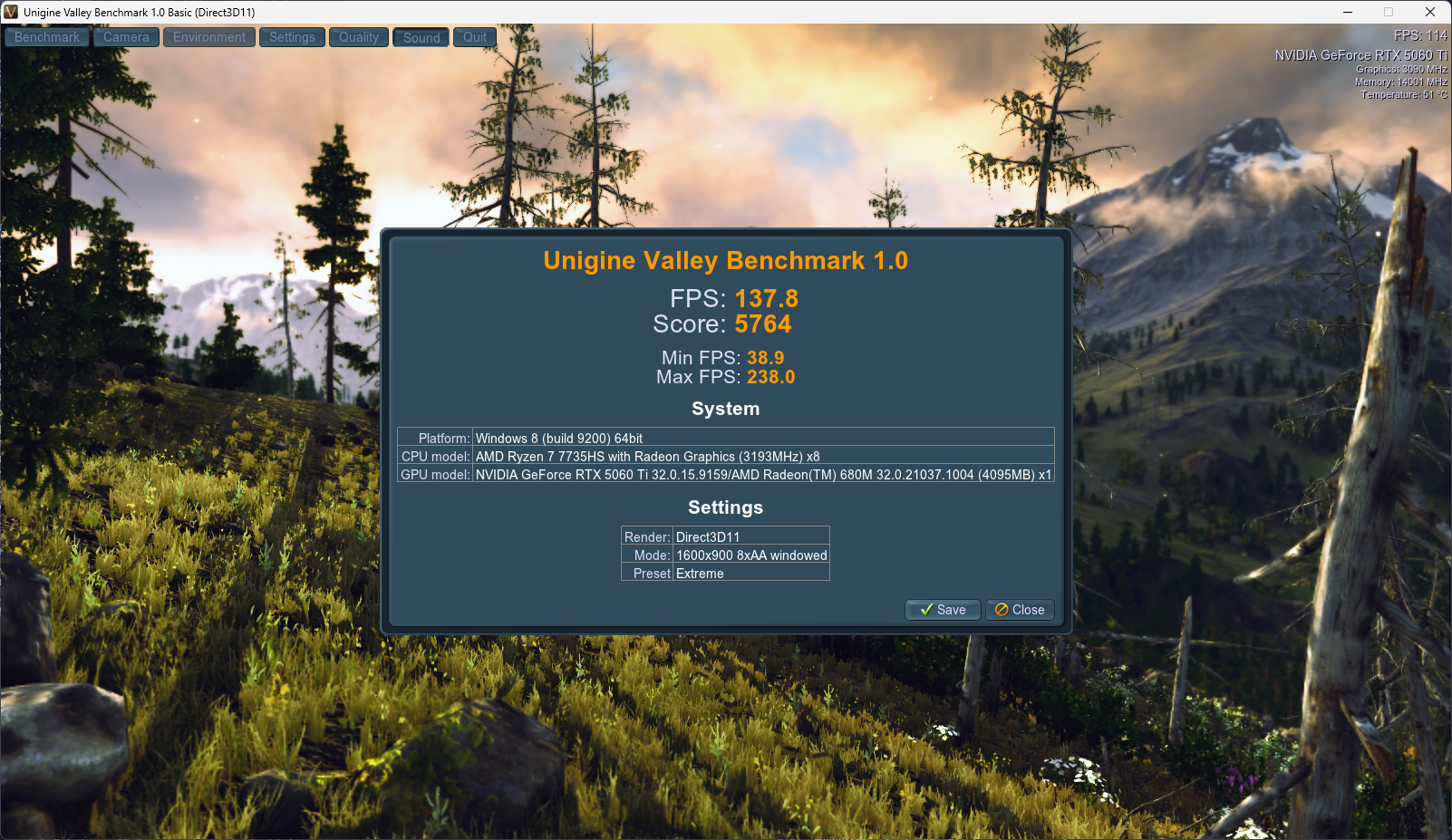

Unigine
| Name | AMD 680M | AMD 5700XT PCIe3 | AMD 5700XT PCIe4 | Nvidia 5060Ti PCIe4 |
|---|
| Valley Extreme | 914 | 4611 | 4684 | 5764 |

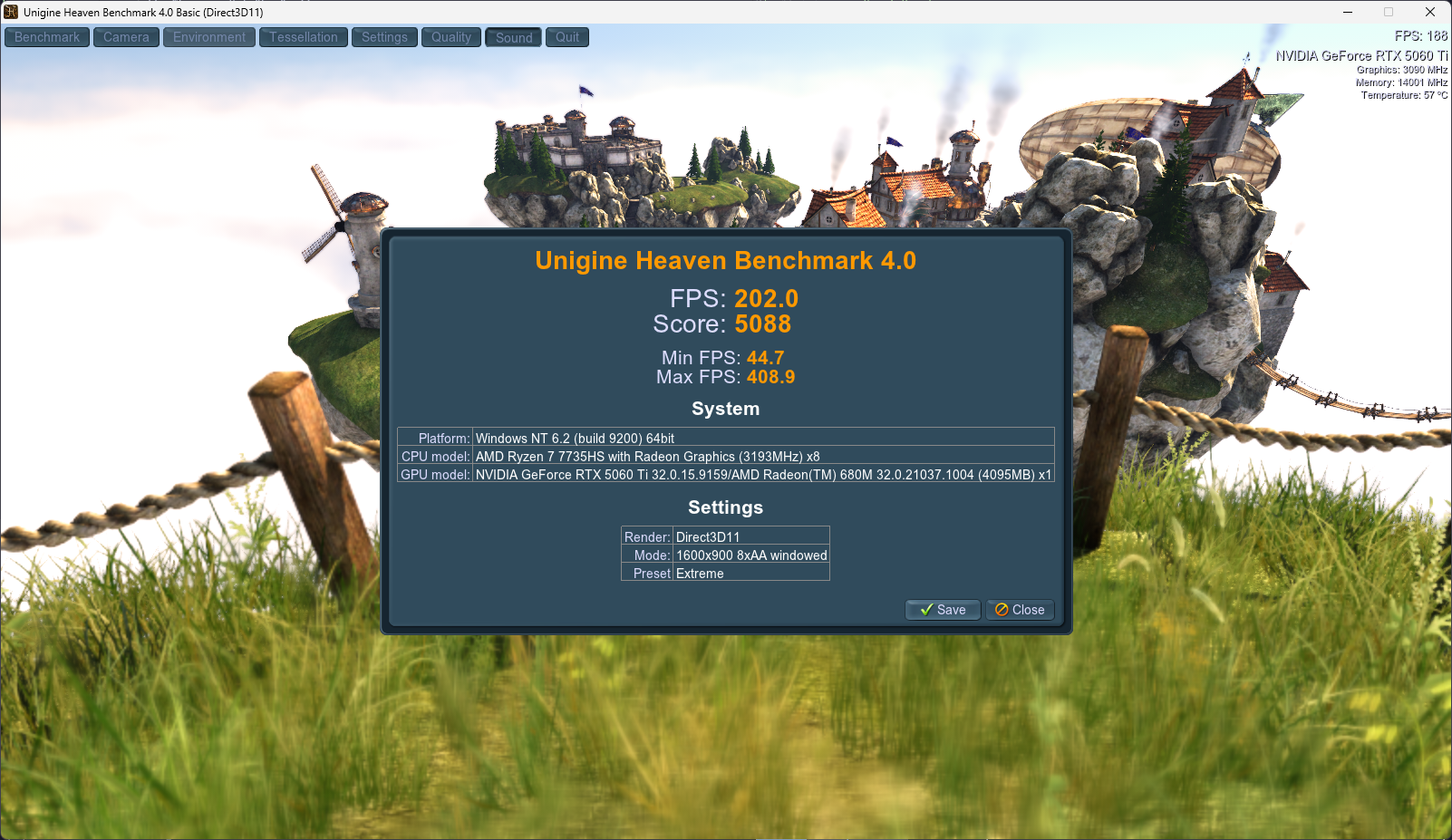

| Heaven Extreme | 747 | 2845 | 3342 | 5088 |
| Superposition Medium | 4214 | 13345 | 16527 | 21661 |
| Superposition High | 3172 | 10532 | 12130 | 18896 |

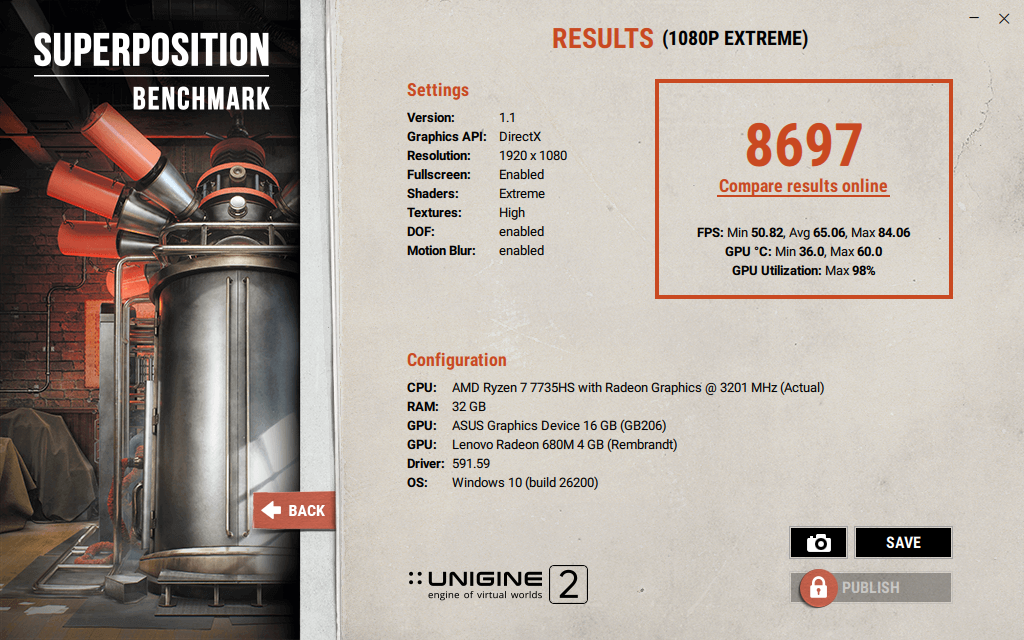

| Superposition Extreme | 1425 | 4659 | 5027 | 8697 |

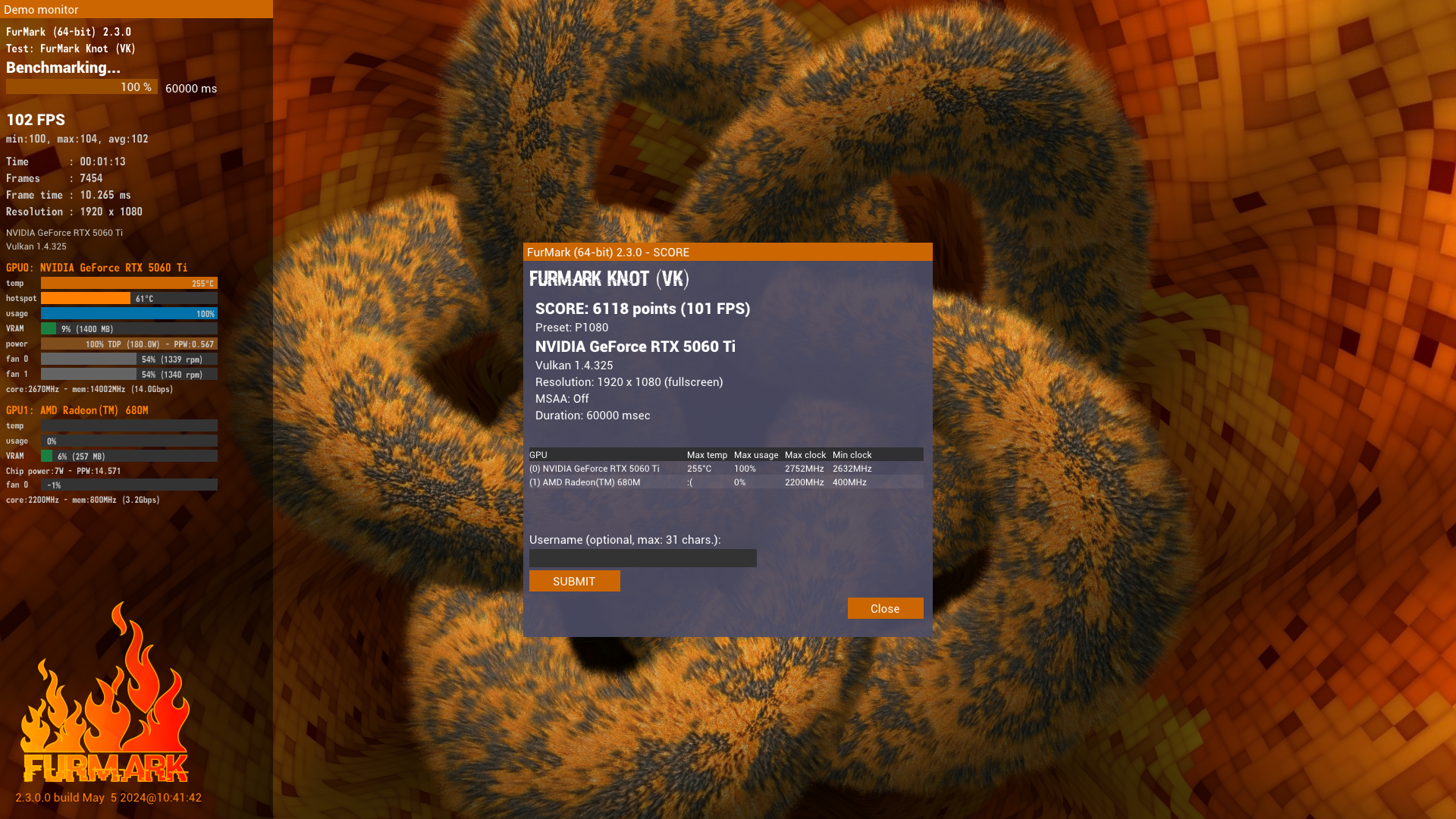

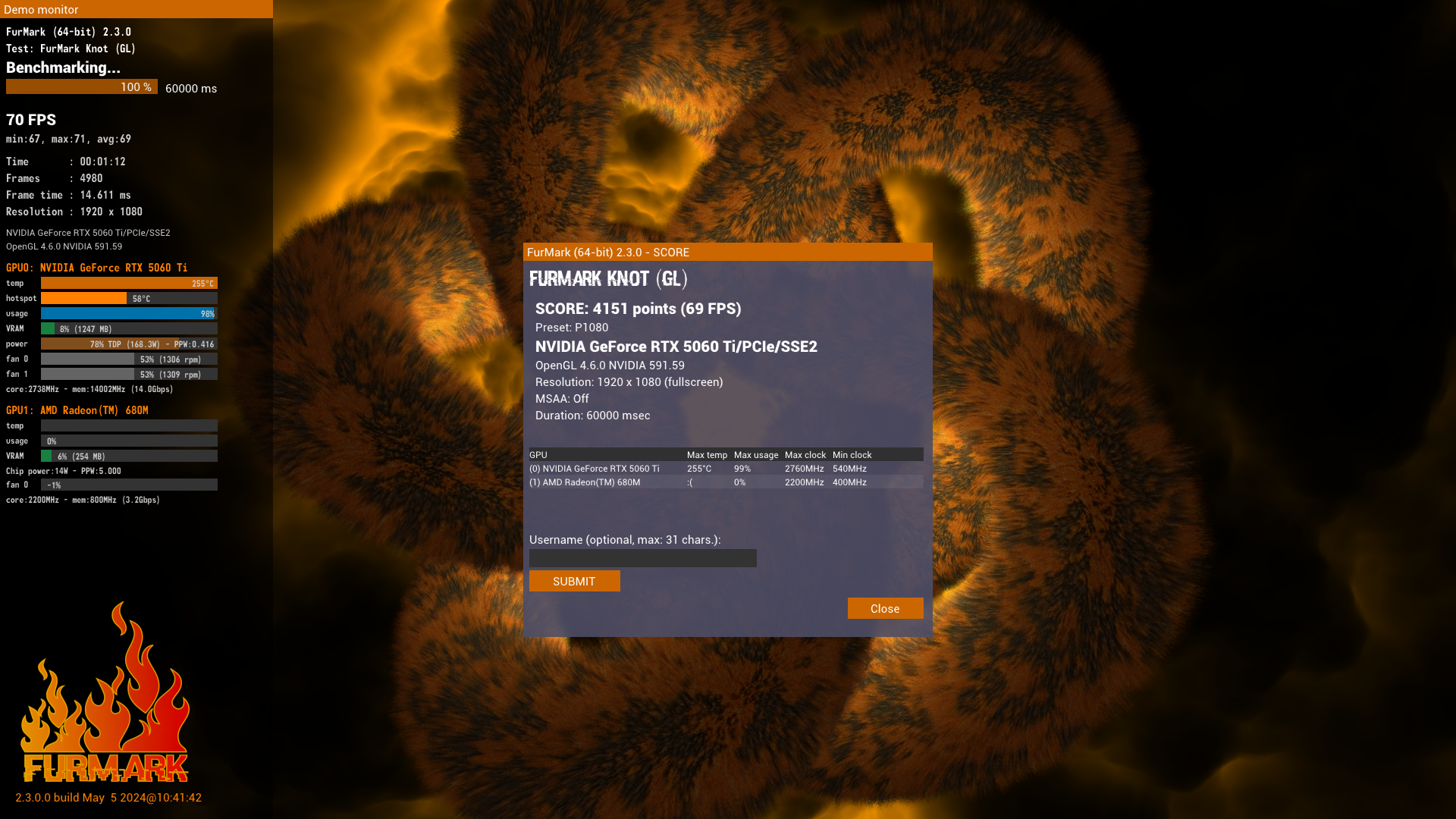

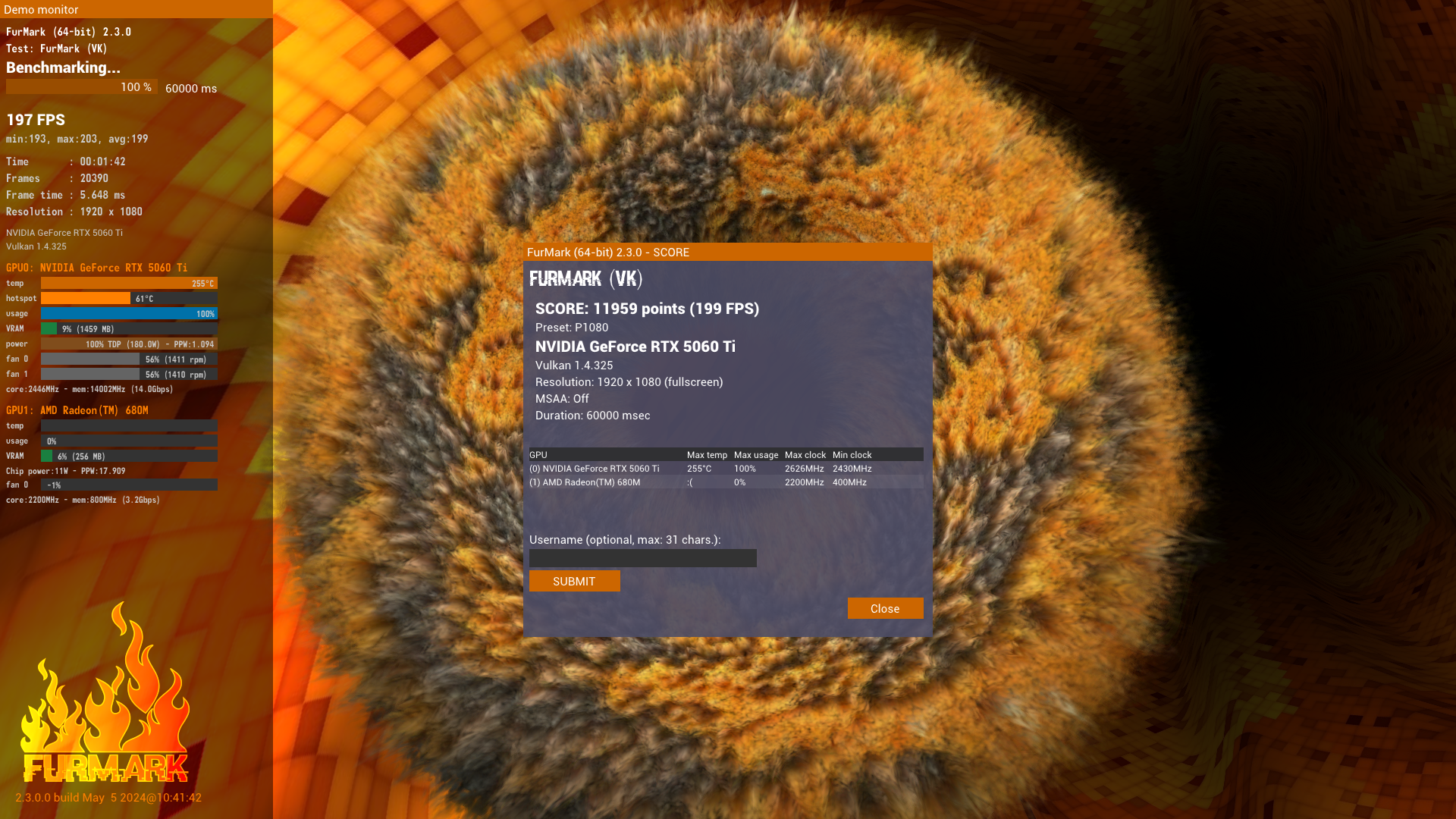

Furmark 2
| Name | AMD 680M | AMD 5700XT PCIe3 | AMD 5700XT PCIe4 | Nvidia 5060Ti PCIe4 |
|---|
| Donut OpenGL | 1797 | 6513 | 8015 | 11428 |
| Donut Vulkan | 1370 | 6037 | 7453 | 11959 |
| Knot OpenGL | 618 | 2208 | 2226 | 4151 |
| Knot Vulkan | 641 | 3063 | 3393 | 6118 |

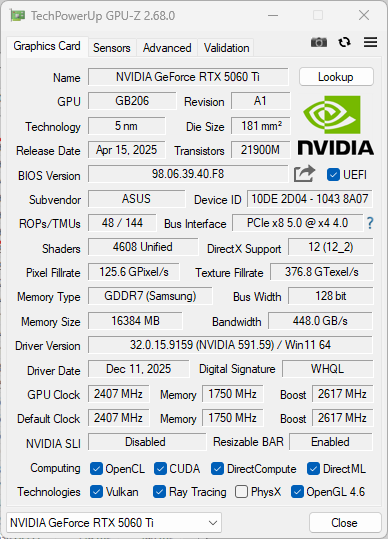

GPU-Z
| Name | AMD 680M | AMD 5700XT PCIe3 | AMD 5700XT PCIe4 | Nvidia 5060Ti PCIe4 |
|---|
| PCIe Interface | Gen 4.0 x 16 | Gen 3.0 x 4 | Gen 4.0 x 4 | Gen 4.0 x 4 |
